Spacecraft Design - Environment specification: data archive

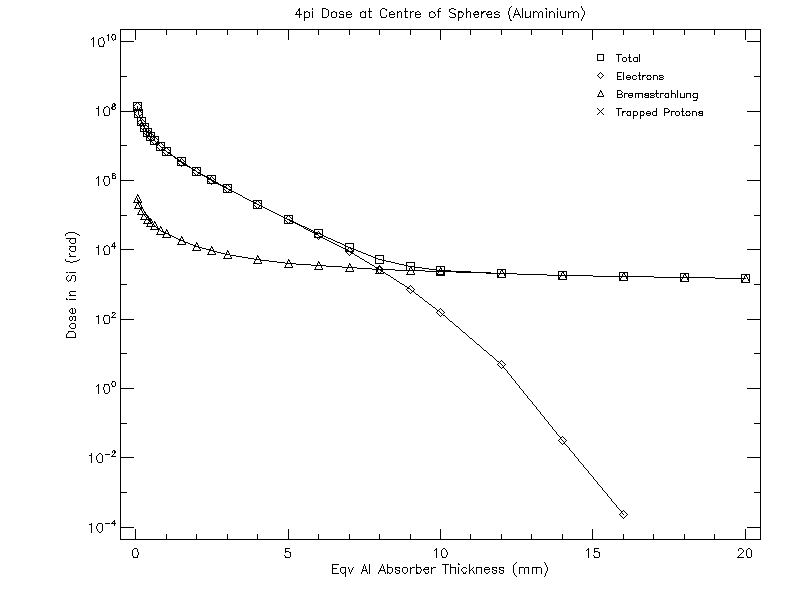

The mission averaged integral >0.04 MeV electron flux (left) and resulting ionising dose in Si as function of Al shielding thickness (right) along
a typical Galileo spacecraft orbit for a three year mission. The AE-8 MAX flux and the SHIELDOSE-2Q dose are calculated using SPENVIS.
The service "Spacecraft Design - Environment specification: data archive" aims to provide, for past or future spacecraft, statistical information on the space environment (i.e. ionising radiation, plasma, microparticles, atmosphere, and UV) and its effects (e.g. dose, single event upset, sensor background, cumulated charge, spacecraft anomalies, microparticle impacts), as well as long-term solar cycle prediction since several spacecraft effects exhibit solar cycle variation. Such information is needed for tailored design of space systems especially in relation to radiation protection, electromagnetic compatibility and microparticle impacts. The service is intended for personnel involved in generating space environment specifications for the design of spacecraft.
This service is implemented through a combination of products and tools which can be found through the following tabs along with expert support provided by the teams constituting the ESA Space Weather Service Network. Should you require further guidance in the use of this service, or have specific questions about any aspects of the service presented here, don’t hesitate to contact the Helpdesk.
A number of models and in-orbit sensor datasets are made available with the help of tools and products such as:
- the Space Environment Information System (SPENVIS) coupling several empirical and engineering models of the space environment and its effects on spacecraft or components based on a mission plan;
- the Space Environment Data System (SEDAT) allows engineering analyses to be carried out on datasets related to the spacecraft charged particle environments;
- the Solar Energetic Particle Environment Modelling application (SEPEM) allowing solar energetic particle statistical analyses on an extended set of cross-calibrated data;
- the European Debris Impact Database (EDID) provides data processing and dissemination functions for measurements from European debris and meteoroid impact detectors;
- the Space Research Laboratory Solar Energetic Particles (UTU-SEP) products provide access to a high energy SEP event list as well as the calculation of the expected high energy proton fluence and worst-case proton flux for a specific mission length due to SEPs;
- measurements and derived data products from the Energetic Particle Telescope (EPT) on PROBA-V;
- measurements and derived data products from the Standard Radiation Environment Monitors (SREM) on Proba-1, Integral, Rosetta, Herschel and Planck;
- the electron population model from Mullard Space Science Laboratory (MSSL) for LEO, MEO and GEO as function of solar wind speed and Kp index;
- the SWIFF Plasmasphere Model (SPM) dynamical simulation provides the number density and temperatures of the electrons as a function of time;
- the Satellite Risk Indicators Forecast (SaRIF) provides colour-coded risk indicators showing the risk from internal charging and total ionising dose for the outer radiation belt and slot region, as well as a recontruction of these environments;
- the Space Weather Data Browsing and Analysis (SWE Data) provides access to space weather environment data.
This service page is curated by the ESC Space Radiation. For further information, please contact SSCC Helpdesk.
